Voyager 14" 7 ft with 5-way aluminium roofrack

Voyager 14" 7 ft with 5-way aluminium roofrack - Trailers - Leisure Trailers

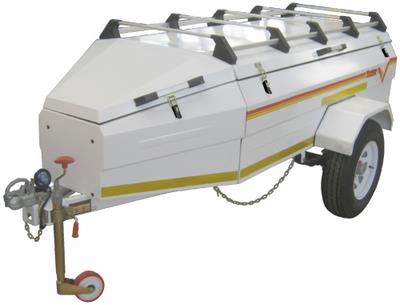

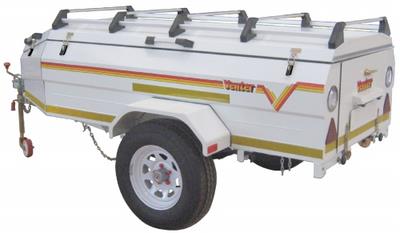

Back left view closed

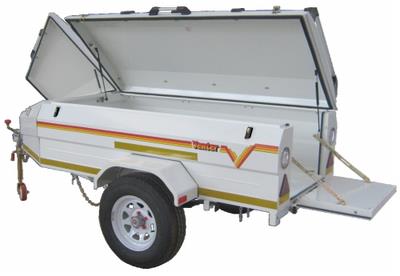

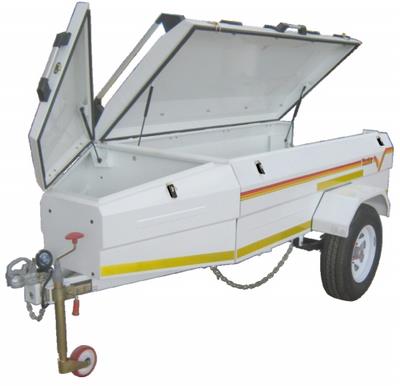

front left view open

Back left view open

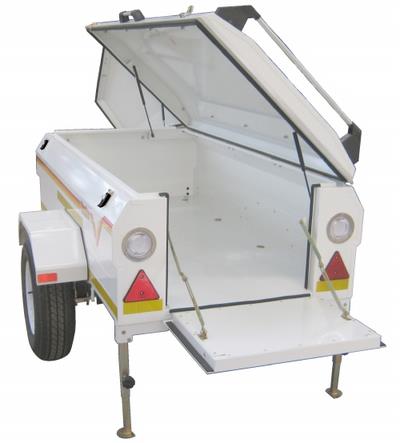

Back view open

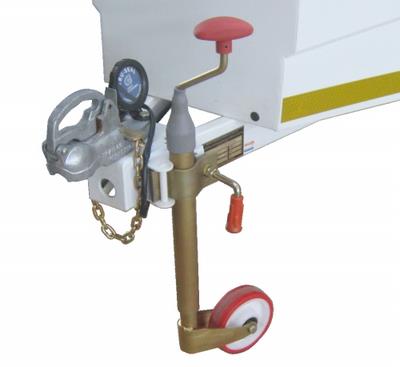

Coupler and jockey wheel

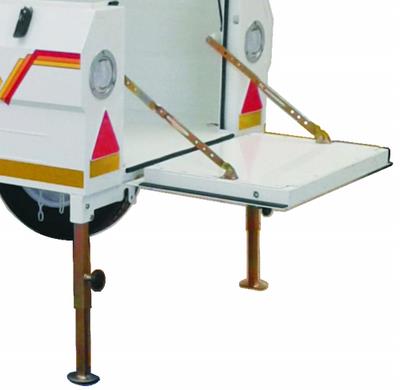

Support legs

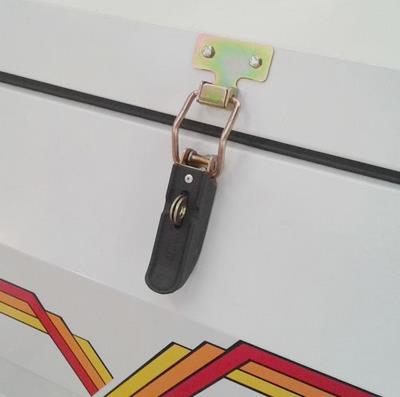

Toggle catch detail

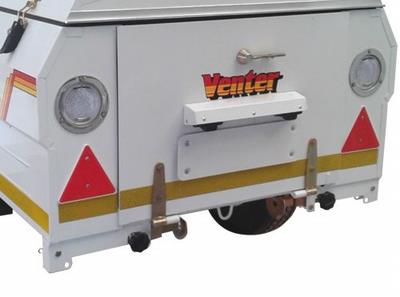

Back panel detail

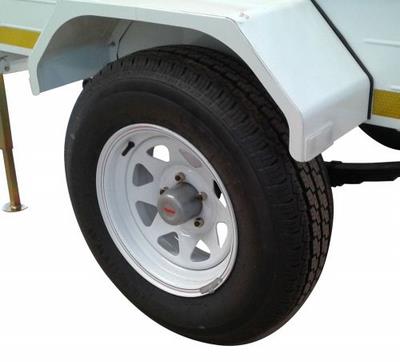

Wheel and dust cap

Price: POA

Select your region for transport:

Add to Quotation

Back to Leisure Trailers

Back to Trailers

Voyager is a new series of leisure trailer that sports economy and maximim space utilisation.

The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid.

Added stability when parked, comes from two extension legs, that neatly tuck away. It features superb space utilisation getting more into less. This trailer has the following:

Features

• A deep body of over 500 mm for those larger items
• Body constructed of zinc galvanised sheet steel
• A large nosecone for additional storage
• 14 inch wheels for rough terrain, plus spare wheel
• Two extension legs providing stability on uneven ground
• A bigger 5-way aluminium roof rack provides for carrying large items externally
• A wide rear tailgate for access to the trailer interior
• A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior
• 6 inch adjustable jockey wheel
• 36 inch 8 blade leaf springs
• 8 ring holders for securing luggage inside
• Very sturdy coupler
• Strong construction using 30% more steel than standard trailers
• A long life 1250kg axle
• Numberplate twin light fitting
• Aluminium handles
• New multi-function LED light
• New numberplate holder

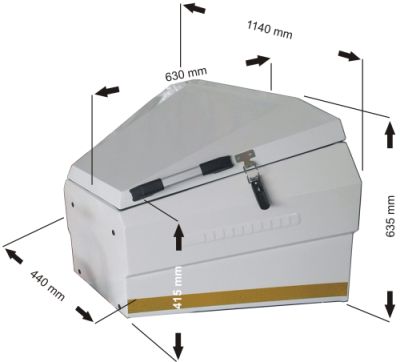

Nosecone Sizes

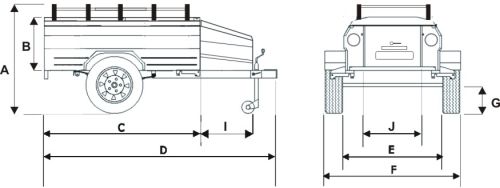

Dimensions
A	Height (over all)	1250 mm
B	Height (side)	640 mm
C	Length (body)	2105 mm
D	Length (over all)	3055 mm
E	Width (inside)	1135 mm
F	Width (over all)	1575 mm
G	Ground Clearance	460 mm
I	Length (nose-cone)	650 mm

Technical Info
Tare Mass	280 kg
GVM	750 kg
Pay Load	470 kg
Axle Length	1400 mm
Axle Capacity	1250 kg
Leaf Springs	8 blade 36 inch
Wheels	195 x 14 inch

Doors
Door (rear - height)	500 mm
Door (rear - width)	620 mm

Optional Equipment
7ft Voyager trailer carpet set R 0 (Incl.VAT)	Jerrycan holder R 0 (Incl.VAT)
Rubber Mat for 7ft R 0 (Incl.VAT)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
