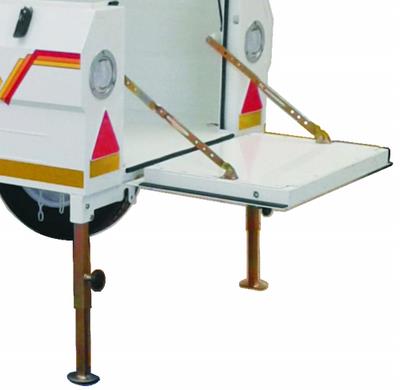

Support legs

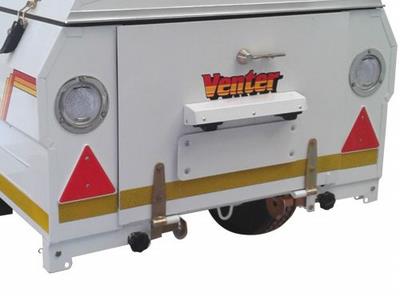

Back panel detail

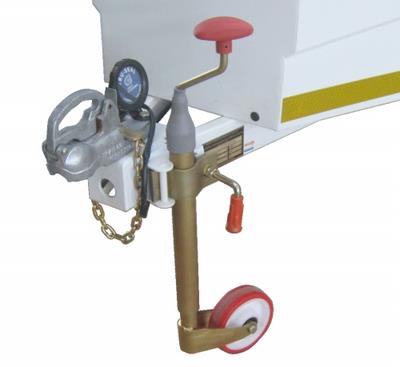

Jockey wheel

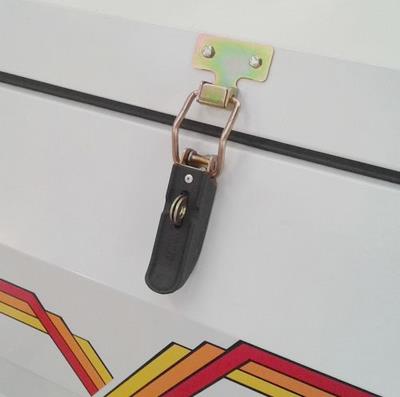

Toggle catch

Price: POA

Select your region for transport:

Add to Quotation

Back to Leisure Trailers

Back to Trailers

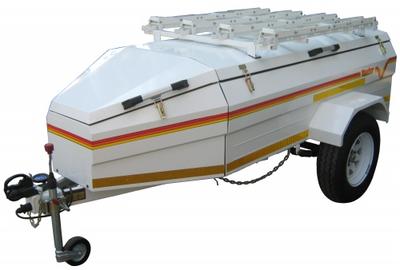

Voyager 13" 7 ft with cycle rack

Voyager is a new series of leisure trailer that sports economy and maximim space utilisation.

The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid.

Added stability when parked, comes from two extension legs, that neatly tuck away. It features superb space utilisation getting more into less. This trailer has the following:

Features

• A deep body of over 500 mm for those larger items
• Body constructed of zinc galvanised sheet steel
• A large nosecone for additional storage
• 13 inch wheels for rough terrain, plus spare wheel
• Two extension legs providing stability on uneven ground
• A robust cycle rack for carrying four bicycles
• A wide rear tailgate for access to the trailer interior
• A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior
• 6 inch adjustable jockey wheel
• 36 inch 6 blade leaf springs
• 8 ring holders for securing luggage inside
• Very sturdy coupler
• Strong construction using 30% more steel than standard trailers
• A long life 1250kg axle
• Numberplate twin light fitting
• Aluminium handles
• New multi-function LED light
• New numberplate holder

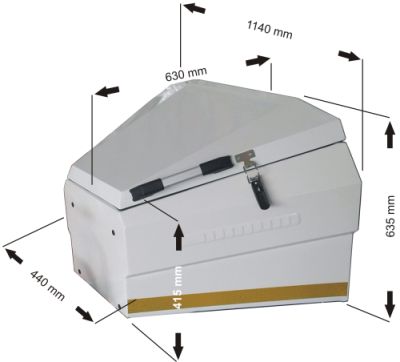

Nosecone Sizes

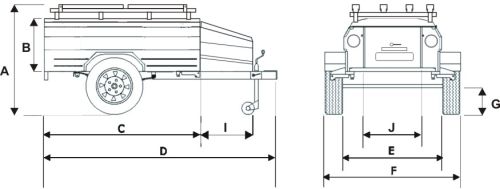

Dimensions
A	Height (over all)	1350 mm
B	Height (side)	640 mm
C	Length (body)	2105 mm
D	Length (over all)	3055 mm
E	Width (inside)	1135 mm
F	Width (over all)	1575 mm
G	Ground Clearance	460 mm
I	Length (nose-cone)	650 mm

Technical Info
Tare Mass	280 kg
GVM	750 kg
Pay Load	470 kg
Axle Length	1400 mm
Axle Capacity	1250 kg
Leaf Springs	8 Blade 36 inch
Wheels	165 x 13 inch

Doors
Door (rear - height)	500 mm
Door (rear - width)	620 mm (J)

Optional Equipment
7ft Voyager trailer carpet set R 0 (Incl.VAT)	Jerrycan holder R 0 (Incl.VAT)
Rubber Mat for 7ft R 0 (Incl.VAT)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
