Traveller 10 Sputnik (Braked)

Traveller 10 Sputnik (Braked) - Trailers - Commercial Trailers

Back view

Back view open

LED light and hinge

Coupler and jockey wheel

Spare wheel holder

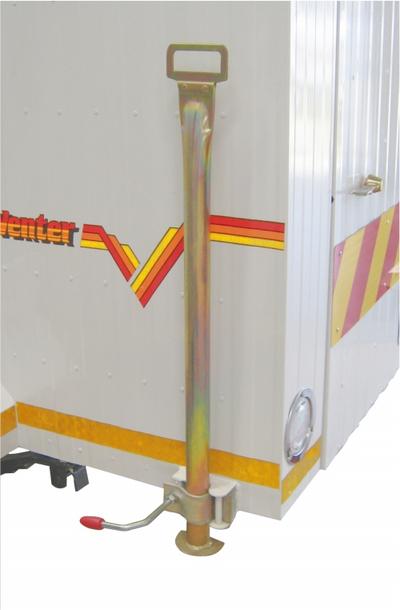

Adjustable support legs

tie-down rings

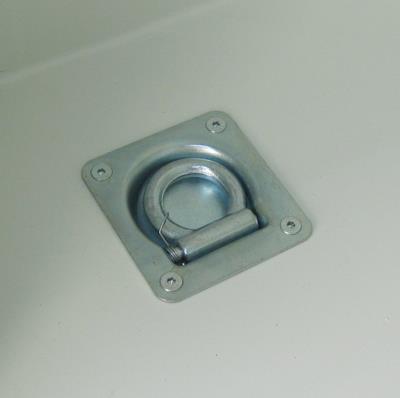

tie-down ring detail

Price: POA

Price quoted Ex. Factory, including spare wheel 195x14 inch
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Commercial Trailers

Back to Trailers

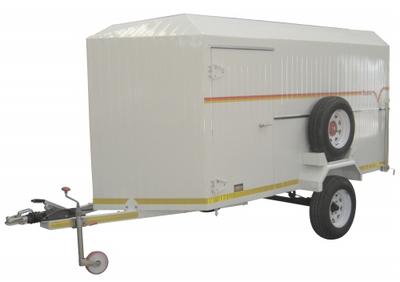

This large commercial trailer is designed for transportation of luggage, bulky goods, plants, sport equipment, parcels etc., where protection during transporting is required.

Features:

• Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.
• Doors are pad-lockable and can be found at the left side and the back of the trailer for easy loading.
• All doors equipped with new heavy-duty hinges for robust usage
• Sides are strengthened by formed hat-sections which prevents drumming and vibration.
• Two extending supporting back legs to provide levelling and stability when parked on uneven ground
• 5 x sprung floor-recessed heavy-duty ring holders to tighten luggage
• Multi-function LED lights
• Heavy-duty coupler
• Spare Wheel holder which is pad-lockable
• Fitted with run-in brakes for maximum safety
• Adjustable durable jockey wheel 8 inch
• Including spare wheel 195x14 inch

Dimensions
A	Height (over all)	2220 mm
B	Height (side)	1660 mm
C	Length (body)	3610 mm
D	Length (over all)	4540 mm
E	Width (inside)	1525 mm
F	Width (over all)	2045 mm
G	Ground Clearance	265 mm

Technical Info
Tare Mass	600 kg
GVM	1525 kg
Pay Load	925 kg
Brakes	Run - in
Axle Length	1830 mm
Axle Capacity	1800 kg
Leaf Springs	12 Blade
Wheels	195 x 14 inch 6 stud

Doors
Door (rear - height)	1330 mm
Door (rear - width)	1050 mm
Door (side - height)	1280 mm
Door (side - width)	730 mm

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
