Three Bike Trailer

Three Bike Trailer - Trailers - Sport Trailers

Back view with wheel brackets

Back view ramp down

Wheel brackets

Ramp secured on floor

Wheel bracket detail

Nosecone open

Nosecone gas lift

Jockey wheel

Ramp close-up

support leg

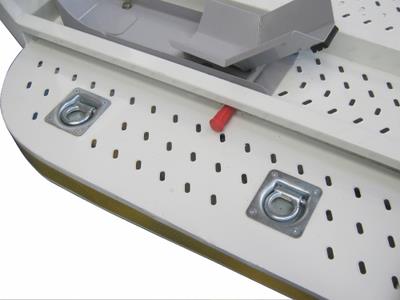

tie-down rings

Price: POA

Price quoted Ex. Factory, Including spare wheel 165x13 inch
please enquire about transport costs

Select your region for transport:

Add to Quotation

Back to Sport Trailers

Back to Trailers

Features:

• Perfectly balanced, yet light weight and robust
• Two adjustable support legs
• Recessed sprung tie-down rings on sides and front to secure bikes in transit
• Bikes loaded from the rear ,with a robust ramp
• Three front-wheel brackets to support bikes as standard fittings
• Ramp stores away on trailer floor with threaded knobs
• Solid floor with perforated tread holes
• Fitted with a lockable coupler(lock optional)
• Equipped with a handbrake chain
• LED tailights are protected
• Spare wheel mounted underneath trailer, at rear
• Spare wheel size - 165x13 inch
• Includes a pad-lockable nosecone
• Aluminium handle on nosecone lid

Dimensions
A	Height (over all)	1110 mm
C	Length (body)	2320 mm
D	Length (over all)	3560 mm
F	Width (over all)	1980 mm

Technical Info
Tare Mass	240 kg
GVM	750 kg
Pay Load	510 kg
Brakes	No brakes
Axle Length	1830 mm
Axle Capacity	1250 kg
Leaf Springs	10 Blade
Wheels	165 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
