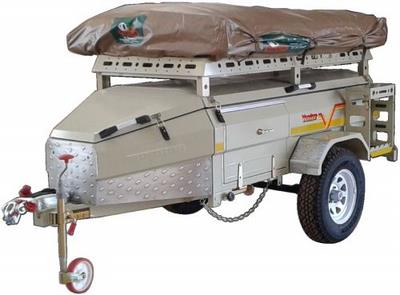

Savuti-XL with tent

The new Savuti-XL, is a quality eye-catching offroad trailer that is well designed to provide a more compact, yet spacious outdoor experience. A key feature is the new heavy-duty articulating coupler, essential for rough terrain, plus the 14 inch 'trak-grip' tyres that provide a true offroad capability.

Features

• Zinc-galvanised steel body, epoxy powder coated, colour beige
• A deep body of 590 mm for those larger items.
• Four extension legs providing stability on uneven ground
• A robust roof rack provides for carrying large items externally, such as tent, includes a table compartment
• The trailer is fitted with a large nosecone, with gas lift assisted lid, mounted on the front A-Frame
• Aluminium handle on trailer lid and nosecone lid
• Plastic handle toggle catch on trailer lid and nosecone lid
• A two-person tent attached onto the roof rack
• Two jerry-can containers mounted on the rear sides of the trailer
• A wide rear tailgate for access to the trailer interior, without lifting trailer lid
• A side door for access to drawout rack
• A gas lift assisted trailer lid allowing for access to the trailer interior, even with the tent attached
• 8 inch adjustable jockey wheel
• 36 inch 8 blade leaf springs
• 8 ring holders for securing luggage inside
• Forged Alko pivoting coupler, allowing full lateral and vertical articulation between towing vehicle and trailer
• Strong construction using 30% more steel than standard trailers allowing for 4x4 conditions
• Long-life 1250kg axle, numberplate twin light, multi-function LED lights
• Trakgrip steel-belt light truck/recreational radial-ply tyres with a multipurpose pattern for on-and off-road use. The SP Trakgrip offers excellent off-road traction, braking and manoeuvrability in wet or dry conditions.
These tyres have excellent high-speed steering ability plus high levels of comfort, ride refinement, low noise characteristics and improved straight-line performance in highway applications.
• Spare wheel also Trakgrip.

Optional Equipment

• Rear tailgate draw-out rack 610mm x 830mm
• A stainless steel watertank with large tray (1030x825x70) on top, and gas bottle holder
• Side-drawout rack (490mm x 990mm)for housing an Engel 15 litre fridge/freezer (Model No: MT17F), or optional storage containers
• Optional side drawout rack for ammo boxes 455mm x 1075mm

Dimensions
A	Height (over all)	1580 mm
B	Height (side)	1150 mm
C	Length (body)	2110 mm
D	Length (over all)	3225 mm
E	Width (inside)	1135 mm
F	Width (over all)	1585 mm
G	Ground Clearance	270 mm
I	Length (nose-cone)	650 mm
H	Height (body)	625 mm

Technical Info
Tare Mass	380 kg
GVM	750 kg
Pay Load	370 kg
Axle Length	1400 mm
Axle Capacity	1250 kg
Leaf Springs	8 Blade 36 inch
Wheels	205 x 14 inch Trakgrip

Doors
Door (rear - height)	400 mm
Door (rear - width)	620 mm (J)
Door (side - height)	400 mm
Door (side - width)	600 mm

Optional Equipment
Drawout Rack for Fridge, side door mounted R 0 (Incl.VAT)	Savuti Drawout rack R 0 (Incl.VAT)
Stainless steel water tank with tray R 0 (Incl.VAT)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
