Savuti with nosecone

Savuti with nosecone
	Trailers	Dealers	Contact

Savuti with nosecone

Savuti with nosecone - Trailers - Offroad 4x4

Back left view closed

Front left view open

Back left view open

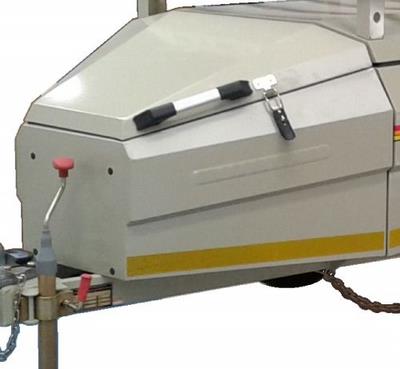

Nosecone with handle

Coupler and jockey wheel

LED light

Jerrycan holder

Front adjustable support leg

Rear adjustable support leg

Roofrack with table compartment

Price: POA

Select your region for transport:

Add to Quotation

Back to Offroad 4x4

Back to Trailers

An Economic Solution

In today’s economics times, solutions that are efficient and cost effective are essential. This off-road trailer provides the right balance between maximising space utilisation and compact size.

The trailer sports a deeper body than standard trailers, allowing for storage of typical camping equipment inside. Access to the interior is very easy with a rear tailgate and a gas-assisted top lid. A large nosecone is provided, jerry cans are externally mounted, freeing up valuable interior space. Added stability when parked, comes from four extension legs, that neatly tuck away..

A robust steel roof rack adds that extra provision for large and bulky items. This sturdy roof rack easily accommodates an optional two-man tent in a few configurations, and has a table compartment.

This new contemporary trailer is specifically designed for the outdoor enthusiast. It features superb space utilisation getting more into less. This trailer has :

Features

• A deep body of over 500 mm for those larger items.
• Large 14 inch wheels for rough terrain, plus spare wheel
• Four extension legs providing stability on uneven ground
• A robust steel roof rack provides for carrying large items externally
• The trailer is fitted with a large nosecone mounted on the front A-Frame
• Provision to attach a 2-man tent onto the roof rack
• Two jerry-can containers mounted on the rear sides of the trailer
• A wide rear tailgate for access to the trailer interior
• A gas lift assisted flip-up trailer lid allowing for easy access to the trailer interior, even with the two-man tent attached
• 6 inch adjustable jockey wheel with two fitted bearings
• 36 inch 8 blade leaf springs
• 8 ring holders for securing luggage inside
• Very sturdy hot dip galvanised coupler
• Multi-function LED lights
• Strong construction using 30% more steel

Optional

• Rear tailgate draw-out rack 610mm x 830mm
• Two person tent
• A stainless steel watertank with large tray (1030x825x70) on top

Dimensions
A	Height (over all)	1330 mm
B	Height (side)	840 mm
C	Length (body)	1805 mm
D	Length (over all)	2750 mm
E	Width (inside)	1135 mm
F	Width (over all)	1575 mm
G	Ground Clearance	265 mm
I	Length (nose-cone)	650 mm

Technical Info
Tare Mass	280kg
GVM	750kg
Pay Load	470kg
Brakes	No brakes
Axle Length	1400 mm
Axle Capacity	1250kg
Leaf Springs	8 blade 36inch
Wheels	195x14 inch

Doors
Door (rear - height)	400 mm
Door (rear - width)	620 mm

Optional Equipment
Savuti Drawout rack R 0 (Incl.VAT)	Savuti water filler cap R 0 (Incl.VAT)
Stainless steel water tank with tray R 0 (Incl.VAT)	Tent for Savuti Trailer R 0 (Incl.VAT)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
