Moonbuggy Super with extension frame and roof rack

Moonbuggy Super with extension frame and roof rack - Trailers - Leisure Trailers

Back left view closed

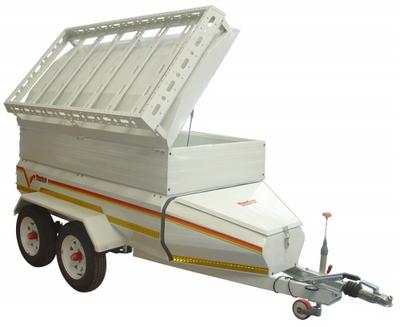

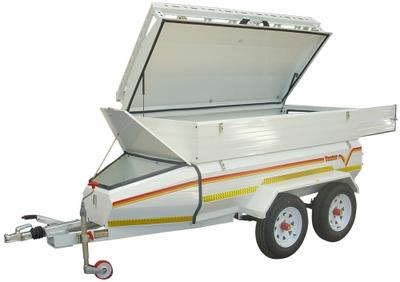

Front left view open

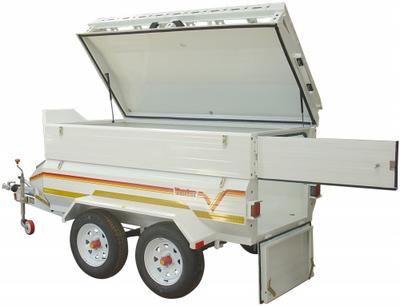

Back left view open

Front right view open

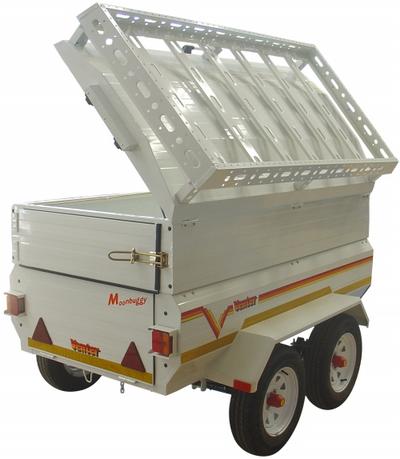

Back right view open

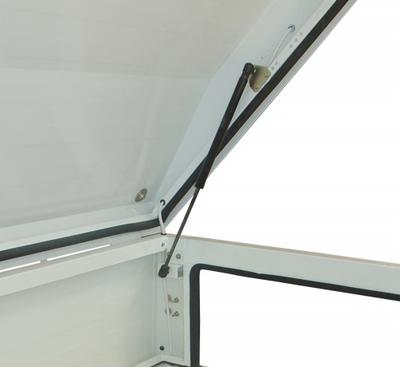

Gas lift assembly detail

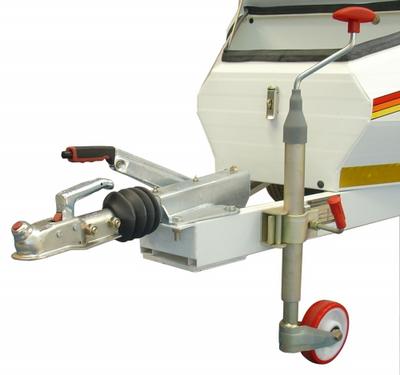

Jockey wheel and coupler

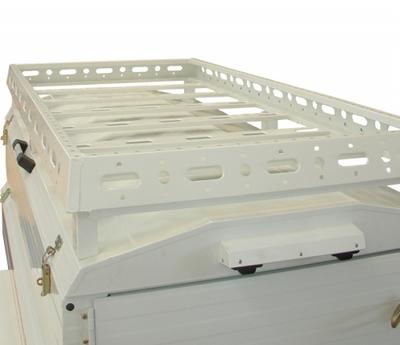

Steel roof rack

Price: POA

Select your region for transport:

Add to Quotation

Back to Leisure Trailers

Back to Trailers

This Moonbuggy Super trailer is equipped with an extension frame as well as a steel roofrack. The additional storage provided is easily handled by this trailer with it's double axles and run-in braking system. The a-frame is reinforced with an additional 10mm steel plate under the heavy-duty coupler.

Constructed from quality corrosion resistant, electro and zinc galvanised sheet steel, the rigid body is both safe and well balanced, maintaining perfect alignment behind the towing vehicle.

Features

• One spare wheel 155 x 13”

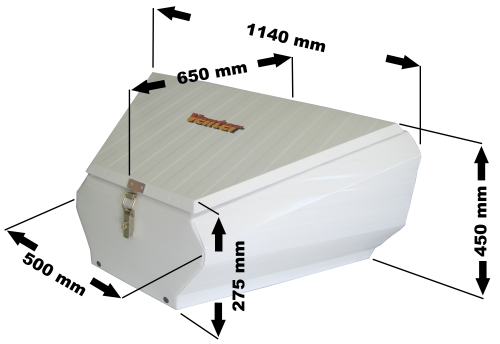

• Nosecone
• Extension frame with rear door
• 8 or 6 ring holders to tighten luggage
• Number plate twin light fitting
• Alko coupler
• Long life special axles with larger bearings
• Fitted with a steel roofrack
• The dust and waterproof lid, opens to 70 degrees, and is lockable.
• Fold-down tailgate, aids loading and cleaning, and is even removable.
• Protected tail lights.
• Adjustable new jockey wheel

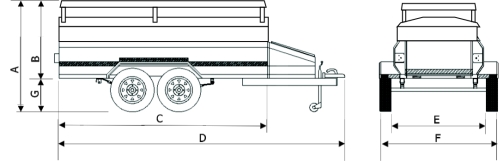

Dimensions
A	Height (over all)	1565 mm
B	Height (side)	1040 mm
C	Length (body)	2060 mm
D	Length (over all)	3470 mm
E	Width (inside)	1180 mm
F	Width (over all)	1570 mm
G	Ground Clearance	250 mm
I	Length (nose-cone)	620 mm

Technical Info
Tare Mass	320 kg
GVM	1167 kg
Pay Load	847 kg
Brakes	Run-in
Axle Length	1405 mm
Axle Capacity	700 kg x 2
Leaf Springs	3 Blade x 4
Wheels	155 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
