Modular Flat Trailer

Modular Flat Trailer
	Trailers	Dealers	Contact

Modular Flat Trailer

Modular Flat Trailer - Trailers - Commercial Trailers

Back left view

Back left view legs down

Support leg up

Support leg down

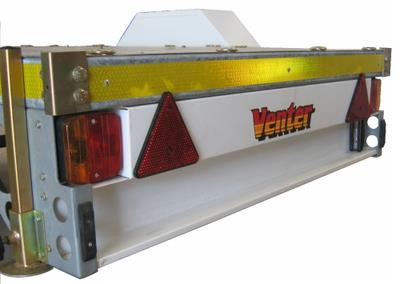

Rear light detail

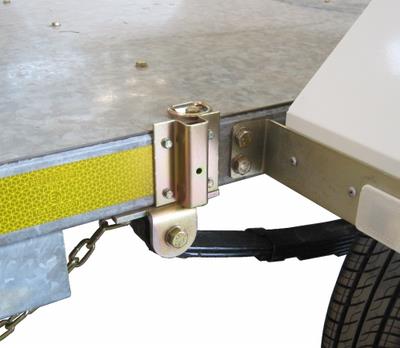

Rail brackets detail

Coupler and jockey wheel

Coupler detail

Tie-down rings

Mudguard detail

Spare wheel holder

Price: POA

Select your region for transport:

Add to Quotation

Back to Commercial Trailers

Back to Trailers

Modular Multi-purpose Trailer

This multi-purpose trailer can be configured for varied purposes. Various elements can be added to this basic version customising the trailer for different transport purposes.

This version of the trailer is suited to carrying equipment that can be fixed to the flat floor. Items such as generators, pumps and compressors that need to be transported to site.

Features

• All chassis A-frame and platform parts galvanised

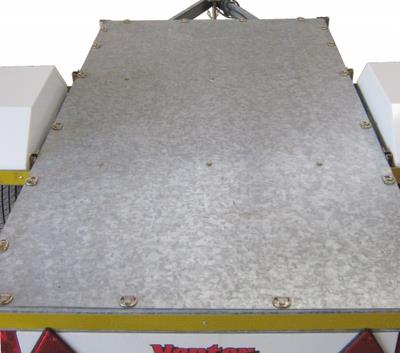

• Flat galvanised sheet floor base 2065 x 1140
• Two rear adjustable support legs
• New adjustable jockey wheel 6 inch
• 20 x tie-down rings fixed to floor
• White powder-coated rear light panel for numberplate and reflectors
• Two white powder-coated mudguards
• Safety chain for tow-hitch
• Brake chain
• Plated Alko coupler
• One spare wheel 155x13 inch
• DIY version packs into case 2230 x 750 x 420

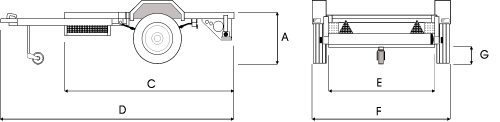

Dimensions
A	Height (over all)	550 mm
C	Length (body)	2080 mm
D	Length (over all)	3110 mm
E	Width (inside)	1140 mm
F	Width (over all)	1640 mm
G	Ground Clearance	250 mm

Technical Info
Tare Mass	200 kg
GVM	700 kg
Pay Load	500 kg
Brakes	No brakes
Axle Length	1400 mm
Axle Capacity	700 kg
Leaf Springs	6 Blade 36 inch
Wheels	165 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
