Elite 7 with extension frame

Elite 7 with extension frame - Trailers - Leisure Trailers

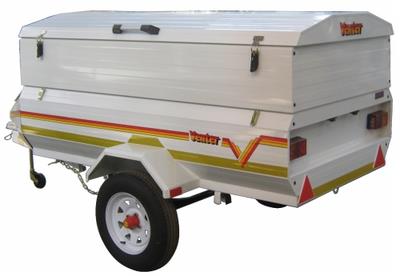

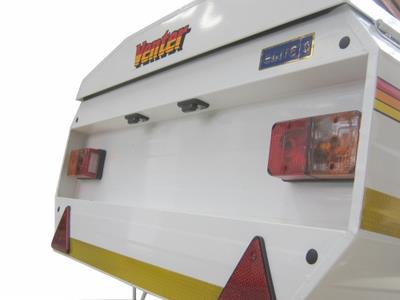

Back left view closed

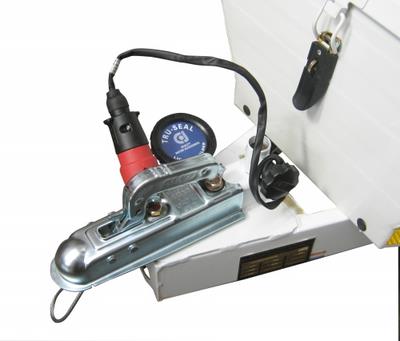

Coupler with plug holder

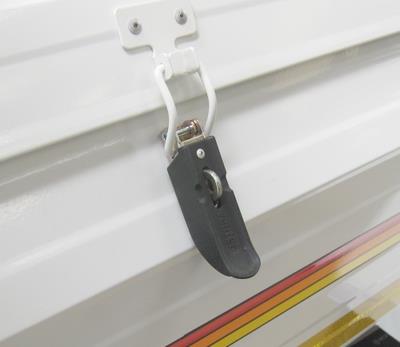

Toggle catch

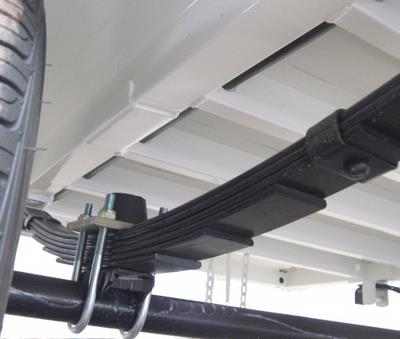

6 Blade leaf springs

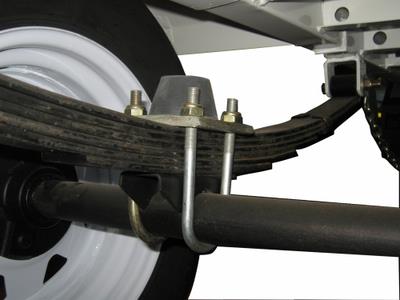

Bump stops on axle

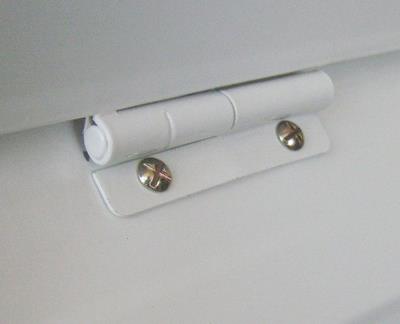

Lid hinges

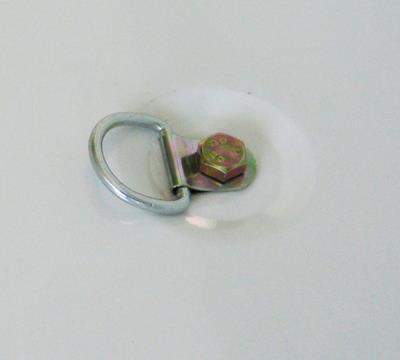

Tie-down rings

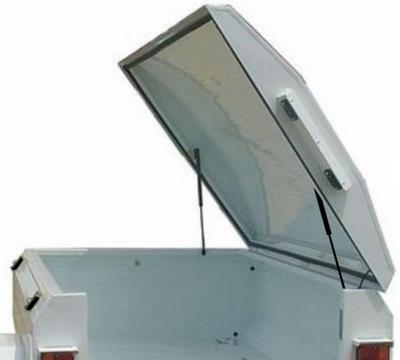

Two gas lifts on lid

Numerplate holder and light

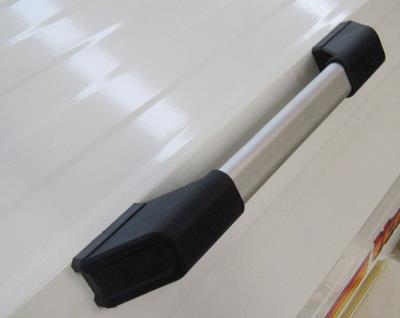

Aluminium lid handle

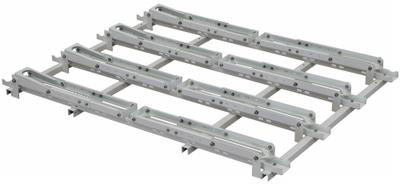

Optional cycle rack (see link on page)

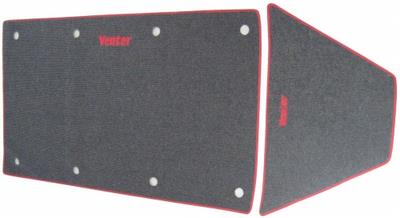

Optional carpets for trailer and nosecone

Price: POA

Select your region for transport:

Add to Quotation

Back to Leisure Trailers

Back to Trailers

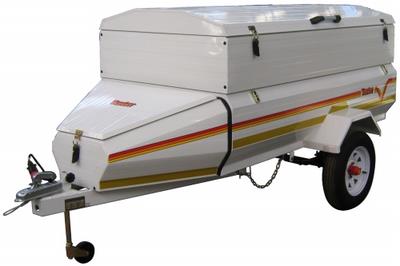

Elite 7 with extension frame

With cars scaling down in size for economy and versatility, it is becoming more and more apparent to holiday goers or anyone just wanting to transport items, that an alternative source of space needs to be found. Well, it already has been, in the form of Venter Luggage trailers.

What would you expect from a trailer that has been part of the South African travel landscape for so long? Well, to be such a survivor you'd probably imagine that the trailer would be high quality, have tasteful, constant design and be as versatile as you need it to be. Well, with a Venter trailer you certainly wouldn't be wrong.

This trailer is a veritable workhorse that can be utilized for multiple purposes. The unique design and robustness and its high standards of quality and reliability have been developed and perfected over a period of many years. And boy, does it show.

Constructed from quality corrosion resistant, electro and zinc galvanised sheet steel, the rigid body is both safe and well balanced, maintaining perfect alignment behind the towing vehicle. What's more, only top class, proven materials and parts are used. And with dealerships nationwide, quality service and authentic spares are guaranteed. It's this kind of reliability and quality that has ensured very high resale values.

Features

• One spare wheel 155 x 13”

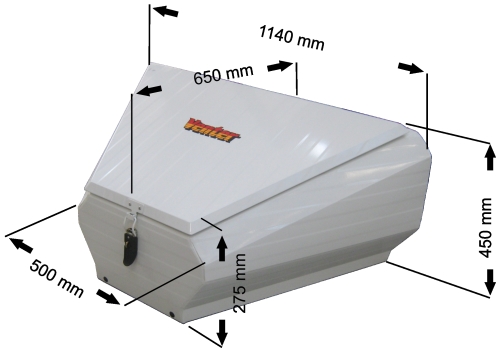

• Nosecone with new toggle catch
• Extension frame for 7ft luggage trailer
• 8 tie-down ring holders to tighten luggage
• Number plate twin light fitting
• Alko coupler with plug holder
• Long life special axle with larger bearings
• 6 blade leaf spring
• Two gas lifts on trailer lid
• New toggle catches on lid
• Aluminium handle on lid
• Bumpstops on axle

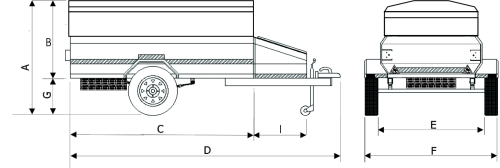

Dimensions
A	Height (over all)	1406 mm
B	Height (side)	880 mm
C	Length (body)	2125 mm
D	Length (over all)	3175 mm
E	Width (inside)	1180 mm
F	Width (over all)	1550 mm
G	Ground Clearance	250 mm
I	Length (nose-cone)	650 mm

Technical Info
Tare Mass	209 kg
GVM	700 kg
Pay Load	491 kg
Brakes	None
Axle Length	1400 mm
Axle Capacity	700 kg
Leaf Springs	6 Blade
Wheels	155 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
