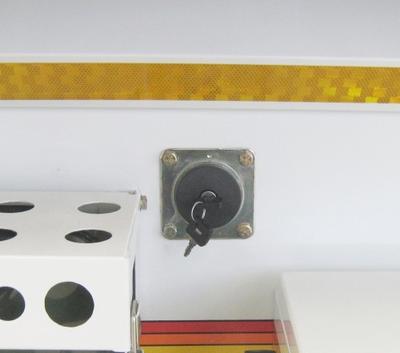

Lockable water filler cap

Washing table nylon storage rollers

Washing table being inserted

Washing table packed away

Stainless steel 304 80l water tank

Padlockable water outlet with mudflap

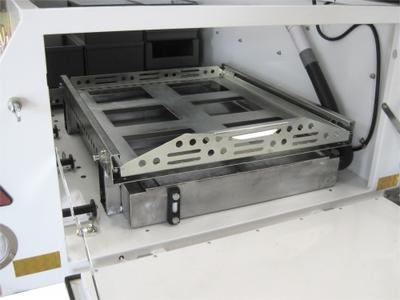

Side drawout rack with ammo boxes

Wider drawout rack for ammo boxes

Washing table rollers for wider rack

Price: POA

Select your region for transport:

Add to Quotation

Back to Offroad 4x4

Back to Trailers

The Bushbaby trailer has had steady improvements added over the years, making this well-suited to harsh outdoor conditions. With addition of the extra features this trailer really shines. It comes in an unbraked and braked version.

Bushbaby Braked Fitted With All Optional Equipment

• Rear drawout rack for ammo boxes 900mm x 1130mm
• Side drawout rack for ammo boxes 455mm x 1075mm
• Washing table nylon storage rollers
• Lockable water tank filler cap
• Stainless steel washing table mounting brackets
• Two pad-lockable jerry can holders
• One heavy duty steel roof rack with table compartment able to carry a large tent
• Kitchenette with twin hob gas stove and spice storage rack
• Two extending supporting back stays and one jockey wheel to provide levelling
• 15 inch 6 stud rims with 215 Trakgrip tyres for rough terrain
• One spare wheel
• Epoxy coated in white, beige or green, manufactured from quality zinc galvanised sheet steel.
• 6 ring holders with securing straps
• Axle capacity 1800kg
• 2 Gabriel shock absorbers
• 12 blade 36 inch leaf springs
• Pad-lockable tailgate that serves as a table top
• Alko-Trailco coupler
• 2 x lid net zip bags
• 1 x pad-lockable 5kg gas cylinder holder
• Multi-function LED lights
• Swing-out spare wheel attachment with maintenance-free vesconite bushes
• Accidental spare wheel bracket stop with reinforced quarter panels
• Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted access flap
• 1 x Senior tent 2-4 man
• 1 x Washing table stainless steel
• 1 x 304 S/S 80l water tank complete with lockable filler cap
• Water

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	1860 mm
D	Length (over all)	3560 mm
E	Width (inside)	1100 mm
F	Width (over all)	1760 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	440 kg
GVM	1470 kg
Pay Load	1030 kg
Brakes	Run-in
Axle Length	1530 mm
Axle Capacity	1800 kg
Leaf Springs	12 Blade 36 inch
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm
Door (side - height)	540 mm
Door (side - width)	510 mm

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
