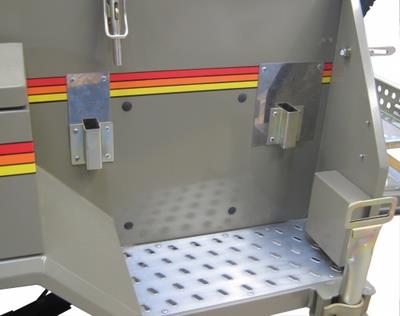

Rear draw-out rack closed

Rear draw-out rack open

Side door and toolbox

Washing table locations

Water tank filler cap

Wider drawout rack for ammo boxes

Side drawout rack with ammo boxes

Washing table rollers for wider rack

Price: POA

Select your region for transport:

Add to Quotation

Back to Offroad 4x4

Back to Trailers

The Bushbaby trailer has had steady improvements added over the years, making this a superb off-road trailer, well-suited to harsh outdoor conditions. With addition of the extra features this trailer really shines as an efficient space utilising vehicle. It comes in an unbraked and braked version.

Features

Bushbaby Braked With Extended Standard Features

see Extended Standard Features with this link

• Rear drawout rack for ammo boxes 900mm x 1130mm
• Side drawout rack for ammo boxes 455mm x 1075mm
• Washing table nylon storage rollers and two elastic bungee cords
• Lockable water tank filler cap
• Stainless steel washing table mounting brackets
• Zinc galvanised coupler "Sigma Autoreverse type"
• Two pad-lockable jerry can holders
• One heavy duty steel roof rack with table compartment able to carry a large tent
• Two pad-lockable enclosures (equipment or tool box)
• Two extending supporting back stays and one jockey wheel to provide levelling and stability when parked on uneven ground
• 15 inch 6 stud rims with 215 Trakgrip tyres for rough terrain
• One spare wheel
• Epoxy powder-coated, cured at 210 degrees C manufactured from zinc galvanised sheet steel
• 4 ring holders to tighten luggage
• Adjustable jockey wheel for more info click here
• Axle capacity 1500kg
• 2 Gabriel shock absorbers
• 12 blade 36 inch leaf springs
• Pad-lockable tailgate that serves as a table top
• Multi-function LED lights
• Swing-out spare wheel attachment with maintenance free vesconite bushes
• Large new nosecone with 4 tie-down rings able to house an 80 litre fridge, accessible from the front, with spring assisted flap for access to fridge controls.

Optional Equipment

see Optional Equipment with this link

• Quality tent with ladder for two to four adults (tent fitted if bought with trailer)
• Gas stove kitchen unit

Dimensions
A	Height (over all)	1570 mm
B	Height (side)	800 mm
C	Length (body)	1860 mm
D	Length (over all)	3560 mm
E	Width (inside)	1100 mm
F	Width (over all)	1760 mm
G	Ground Clearance	330 mm
I	Length (nose-cone)	670 mm

Technical Info
Tare Mass	360 kg
GVM	1470 kg
Pay Load	1100 kg
Brakes	Run-in
Axle Length	1530 mm
Axle Capacity	1800 kg (rated to 1500kg)
Leaf Springs	12 Blade 36 inch
Wheels	215 x 15 inch

Doors
Door (rear - height)	560 mm
Door (rear - width)	1020 mm
Door (side - height)	540 mm
Door (side - width)	510 mm

Optional Equipment
Dish-washing table (stainless steel) R 0 (Incl.VAT)	Draw Out Unit for Fridge R 0 (Incl.VAT)
Gas Bottle Holder R 0 (Incl.VAT)	Lid Netbag R 0 (Incl.VAT)
Plastic Container (large) 600x400x315 R 0 (Incl.VAT)	Plastic Container (medium) 400x300x315 R 0 (Incl.VAT)
Rear draw-out rack R 0 (Incl.VAT)	Spray Can Venter White R 0 (Incl.VAT)
Tent for Bushbaby and Offroader R 0 (Incl.VAT)	Trailer kitchen including 2 plate gas stove and spice rack R 0 (Incl.VAT)

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
