6 Dog with Roofrack and Nosecone

6 Dog with Roofrack and Nosecone
	Trailers	Dealers	Contact

6 Dog with Roofrack and Nosecone

6 Dog with Roofrack and Nosecone - Trailers - Commercial Trailers

$6 Dog with Roofrack and Nosecone$

Front right view

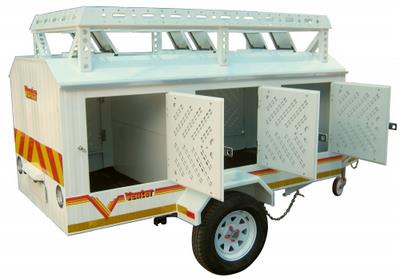

Right front view open

Back view

Back view open

Price: POA

Select your region for transport:

Add to Quotation

Back to Commercial Trailers

Back to Trailers

Features

• Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised electro galvanized sheet steel.
• Dogs are separated by partitions.
• Each compartment is fitted with a mesh hole for cleaning.
• Six doors that are pad-lockable.
• Six adjustable sliding doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-function LED lights
• Weather-proof sprung roof-mounted air vents (trailer can be supplied without roof vents)
• Pad-lockable front mounted spare wheel bracket
• Steel number plate mounting panel
• Robust number plate light
• Adjustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 165x13inch
• Steel roof rack (2124x999x380mm) with clearance for opening roof vents
• Luggage nosecone for extra storage space

Dimensions
A	Height (over all)	1510 mm
B	Height (side)	1040 mm
C	Length (body)	2400 mm
D	Length (over all)	3490 mm
E	Width (inside)	1170 mm
F	Width (over all)	1645 mm
G	Ground Clearance	255 mm

Technical Info
Tare Mass	300 kg
GVM	700 kg
Pay Load	400 kg
Brakes	No brakes
Axle Length	1450 mm
Axle Capacity	750 kg
Leaf Springs	6 Blade 36 inch
Wheels	165 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
